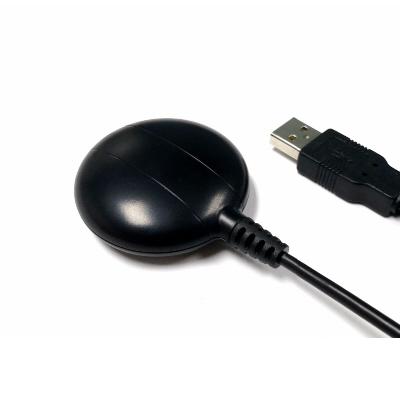

GNSS200L Industrial high sensitivity usb GNSS Receiver (72 channels; GPS+GLONASS+GALILEO Tri-System ; IP67 waterproof; configurable 1 to 10Hz)
GNSS200L Industrial high sensitivity usb GNSS Receiver (72 channels; GPS+GLONASS+GALILEO Tri-System ; IP67 waterproof; configurable 1 to 10Hz)
Regular price
$69.95 CAD
Regular price
Sale price
$69.95 CAD
Unit price
/
per
Applications:
- Track record of data acquisition
- Automatic vehicle location
- Driving recorder
- Navigation
- GPS clock and digital camera
- Child/elderly/personal locator and security system
Features:
- Multi-satellite positioning systems support: GPS/GLONASS/GALILEO
- IP67 waterproof
- Based on 8030 low power single chip
- Low power: 40mA at continuous tracking
- SBAS (WAAS, EGNOS, MSAS) support
- 10Hz update rate option (default 1Hz)
- RTCM 2.3 4.X support
- A-GPS support, OMA SUPL/3GPP TS25.171 (GSM/UMTS) compliant
- Easy to use: built-in patch 25*25*4mm antenna
- Backup battery support for faster position fix
- LED for position fix indication
- Windows location sensor support
Technical Spec:
Compatible OS:
- Windows XP, Vista, 7, 8 10 and 11
- Linux
Product Resources
Official Documents:
Driver Downloads:
- Windows 10 / 11 driver installation guide
- Windows 10 / 11 Location Sensor driver download
- Windows 7 driver download
- Windows 7 driver installation guide
- Linux driver installation guide
- Android connection instruction
Tool Downloads:
How to Articles and Blogs:
- How to connect a GPS/GNSS Receiver to Google Earth on Windows?
- How to connect GNSS200L / GNSS100L USB GNSS Receiver to Windows Maps (or Windows Location Service)?
- How to connect an usb GPS receiver to a Linux computer?
- How to connect an usb GPS receiver with a Raspberry PI?
- How to connect an USB GPS receiver with an Android Device?
- How to confirm your ublox GNSS receiver is installed correctly for Windows Sensor API and location API?
