Antenna of Columbus P-9 Race GNSS Receiver(Multi-Constellation, Single-Band L1, Quad-Feedpoint Design, Perfect for High-Speed Use)

Antenna of Columbus P-9 Race GNSS Receiver(Multi-Constellation, Single-Band L1, Quad-Feedpoint Design, Perfect for High-Speed Use)

Regular price
$107.00
Regular price
Sale price
$107.00
Unit price
per
Availability
Sold out

The Columbus P-9 Race antenna is the genuine component that offers exceptional GPS signal clarity and strength, designed specifically for high-speed applications. Its quad-feed point architecture guarantees enhanced reception and consistent, high-quality signal transmission, essential for users requiring unwavering accuracy and dependability at high speeds

Technical Specifications:

Frequency

  • GPS: L1C/A (1575.42MHz)
  • Galileo: E1-B/C (1575.42MHz)
  • GLONASS: L1OF (1602MHz)
  • BeiDou: B1I (1561.098MHz)
  • QZSS: L1C/A (1575.42MHz)
  • SBAS: EGNOS, GAGAN, MSAS, WAAS, QZSS L1S

Electrical Parameters

  • Gain: 36dB
  • Noise Figure: <1.5dB
  • Impedance: 50Ω
  • V.S.W.R (Voltage Standing Wave Ratio): <2.0
  • Axial Ratio: <3dB
  • Supply Voltage: DC 3~5V
  • Current Consumption: <35mA
  • Polarization: RHCP (Right-Hand Circular Polarization)
  • Feed Points: Quad

Mechanical

  • Connector: SMA Male
  • Radome Material: ABS
  • Mounting Method: VHB (Very High Bond) Adhesive + Magnet

Environmental

  • Operating Temperature Range: -40°C to +85°C
  • Relative Humidity: Up to 95%
  • Ingress Protection Rating: IP67

Certification

  • CE, FCC RoHS


Dimension (mm):

Weight:

  • 118 grams (4.2 ounces)

Size:


Package content:

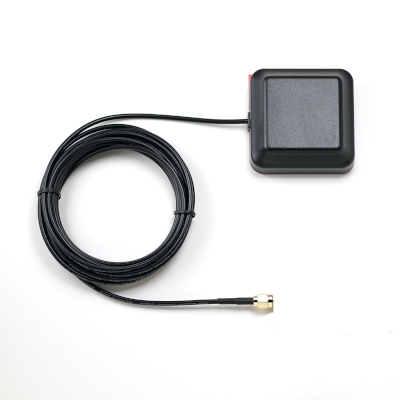

  • Columbus P-9 Race Antenna Main Unit with Integrated 3-Meter Cable  -SMA connector (male)
