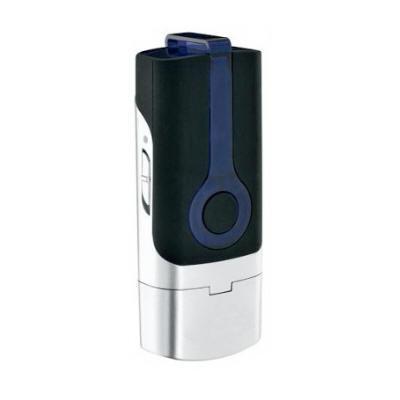

Canmore GT-730FL-S GPS data logger - SiRF IV edition. (48 channels, 256K waypoints, Ultra Low power consumption, 15g only)
The GT-730FL-S is optimized for good performance and low cost. Its short start-up time, fast signal acquisition, having fast time-to-first-fix and high sensitivity, the GT-730FL-S offers good navigation performance even in urban canyons.
Features:
- 48 track verification channels
- SIRF-IV low power chipset
- Tracking sensitivity -163dBm
- Acquisition sensitivity –147dBm
- Cold start < 34 seconds
- Hot start < 1sec under open sky
- 2.5m CEP accuracy
- Support SAGPS function
- SBAS (WAAS, EGNOS) support
- 2M Bytes flash memory for data logging, with 16M-Bit binary data per record that stores up to 256K data records
- Log data can be exported to mapping software suchas Google Earth and TrackMaker
- Logging data interval programmable: by time or distance
- Data tag (start, stop point) can be set by user
- Ultra low power consumption: over 17/56 hours continuous use by 450mAh battery
- USB version 1.1/2.0 interface
- Easy-plug-in Notebook
- Super mini size:77.48x28x17.77 mm
TECHNICAL SPECIFICATIONS
Receiver Type 48 parallel channels, L1 C/A code
Accuracy Position 2.5m CEP
Velocity 0.1m/sec
Startup Time < 1sec hot start
(average) < 34sec cold start
Signal Reacquisition 1s
Sensitivity -147dBm acquisition
-163dBm tracking
Update Rate 1Hz standard
(5Hz/10Hz special order)
Dynamics 4G (39.2m/sec2)
Serial Interface USB
Protocol NMEA-0183 V3.01
GPGGA, GPGLL, GPGSA, GPGSV, GPRMC, GPVTG, GPZDA
4800/9600/19200/38400 baud, 8, N, 1
Datum Default WGS-84
User definable
LED Indicator Blue - GPS / Datalogger status
Red - Charging battery
Green - Battery low
Input Voltage 5V DC
Input Current Typical 26mA tracking (1Hz standard version) & <every 5 second to record point
Typical 8mA tracking (1Hz standard version) & <every 7 second to record point
Dimension 77.48mm L x 28mm W x 17.77mm H
Weight: 34g (Including Battery)
Package content:
-
GPS USB Dongle receiver/Data Logger Device x 1
-
CD manual ,driver & software CD x 1
- Lanyard x 1
Documents:
|
Driver Downloads:
Software Downloads:
- CanWay Software Map Selector |
Sample Data Downloads:
- Sample Data File by GT-730FL-S in CSV format - Sample Data File by GT-730FL-S in GPX format - Sample Data File by GT-730FL-S in NMEA format |
