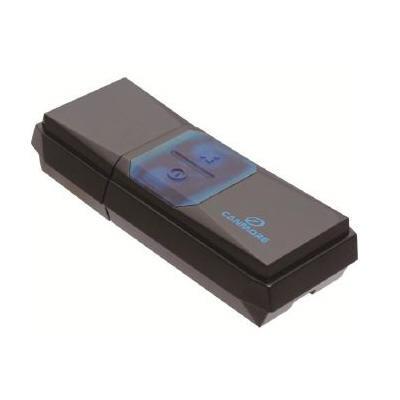

Canmore GT-740FL GPS Data Logger

Canmore GT-740FL GPS Data Logger

Regular price $64.95 CAD
Regular price Sale price $64.95 CAD
Sale Sold out

Canmore GT-740FL GPS Data Logger (48 channels SiRF IV GPS chipset; 1500 hours standby time; G-Sensor; 256K waypoints, IPX 6 water resistant; 15g only)

The GT-740FL is optimized for good performance and low cost. The receiver continuously tracks all satellites in view and provides accurate satellite positioning data. Its 48 parallel channels and provide fast satellite signal acquisition and short startup time. Acquisition sensitivity of –147dBm and tracking sensitivity of –163dBm offers good navigation performance even in urban canyons having limited sky view.

FEATURES

  • 48 track verification channels
  • SIRF-IV low power chipset
  • Tracking sensitivity -163dBm
  • Acquisition sensitivity –147dBm
  • Cold start < 34 seconds
  • Accuracy 2.5m CEP
  • Water resistant up to IPX6
  • SBAS (WAAS, EGNOS) support
  • Support SAGPS function
  • 2M Bytes flash memory for data logging, with 16M-Bit binary
    data per record that stores up to 256K data records
  • Data Logger & Photo Tracker function
  • Compatible with Google Earth
  • Data tag (start, stop point) can be set by user
  • Ultra low power consumption: over 17/56 hours continuous
    use by 430mAh battery
  • Built-in G-sensor with stand-by mode for 1500hours
  • Dimension: 69.83x29.74x15.58mm

TECHNICAL SPECIFICATIONS

  • Receiver Type 48 parallel channels, L1 C/A code
  • Accuracy Position 2.5m CEP Velocity 0.1m/sec
  • Startup Time (average) < 34sec cold start
  • Sensitivity -147dBm acquisition -163dBm tracking
  • Update Rate 1Hz standard
  • Dynamics 4G (39.2m/sec2)
  • Serial Interface USB
  • Protocol NMEA-0183 V3.01 GPGGA, GPGLL, GPGSA, GPGSV, GPRMC, GPVTG, GPZDA 4800/9600/19200/38400 baud, 8, N, 1
  • Datum Default WGS-84 User definable
  • LED Indicator Blue - GPS / Datalogger status Red - Charging battery Green - Battery low
  • Input Voltage 5V DC
  • Input Current Typical 26mA tracking (1Hz standard version) & <every 5 second to record point Typical 8mA tracking (1Hz
    standard version) & <every 7 second to record point <200uA with stand-by mode(5 min no move)
  • Dimension 69.83mm L x 29.74mm W x 15.58mm H
  • Weight: 15g (Including Battery)
  • Operating Temperature -40oC ~ +85oC

Package Content:

  • GPS Data Logger X 1
  • Manual, driver, Software on mini-CD X 1
  • Sport Armband
