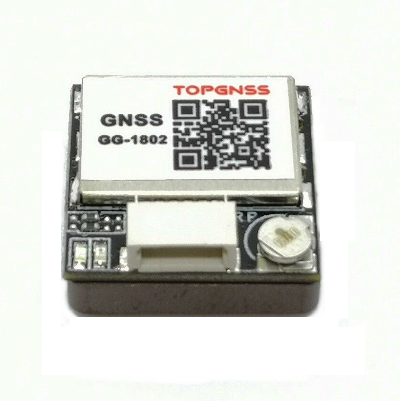

GG-1802 GNSS Receiver module (GPS+GLONASS, u-blox M8030-KT chipset, NMEA 0183 , UART/TTL Interface, built-in antenna, Ultra small, 7.2g only)

GG-1802 GNSS Receiver module (GPS+GLONASS, u-blox M8030-KT chipset, NMEA 0183 , UART/TTL Interface, built-in antenna, Ultra small, 7.2g only)

Regular price
$42.95
Regular price
Sale price
$42.95
Unit price
per
Availability
Sold out

Small volume GPS module, including connector weight: 7.2g. Size only 18*18*8.2mm
Internal integrated LNA low noise amplifier circuit design, integrated FLASH, can be easily integrated in the handheld wearable GPS GLONASS equipment and the aeronautical UAV equipment are required for volume.


Product highlights:
1. M8030-KT GNSS CHIP AND 18*18*4mm high sensitivity GPS antenna Design
2. Using 0.5PPM KDS high precision TCXO
3. built in RTC crystal and skin capacitance faster thermal initiation
4. 1-10Hz location update rate
5. Support the positioning of PPS indicator: positioning success after flashing.
6. Support Online AssistNow and Offline AssistNow and other A-GPS services
7. GPS, GLONASS SBAS (WAAS, EGNOS, MSAS, GAGAN) hybrid engine

GG-1802 GNSS Receiver Module

Technical spec:
• Connector: UART
• u-blox 8 UBX-M8030-KT chipset
• Frequency:
    GPS: L1, 1575.4200 MHz
    GLONASS: L1, 1602 (k x 0,5625) MHz
    BEIDOU COMPASS: B1, 1561.0980 MHz
    GALILEO E1, 1575.4200 MHz
    QZSS L1, 1575.4200 MHz
• Accepts the signals of up to 72 satellites at the same time
• Supports AssistNow online/offline,
    SBAS (WAAS, EGNOS, QZSS and MSAS)
• Supports NMEA 0183 protocols: GGA, GSA, GSV, RMC, VTG GPS+BEI DOU
• Auto Baud Rate up to 115200 bps
• Update rate:
    single GNSS: 18 Hz (e.g. GPS solo)
    multi GNSS: 10 Hz (e.g. GPS+GLONASS)
• Sensibility max. –167 dBm
• LED-indicator for GPS-status
• Operating temperature: -35°C ~ 80 °C
• Power supply: 5 Volt
• Current consumption: max. 45 mA
• Cold start in ca. 26 seconds
• Hot start in ca. 1 second
• Positioning accuracy: 2.5 m CEP (Circular Error Probable) and
    2 m CEP with SBAS
• Cable length: 15CM
• Dimensions (LxWxH): 18x 18 x 8.3 mm

GNSS Module

GG-1802 Module

GNSS Module
