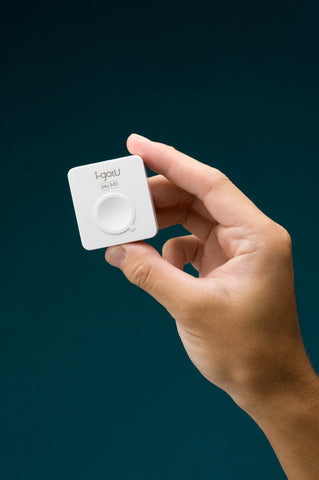

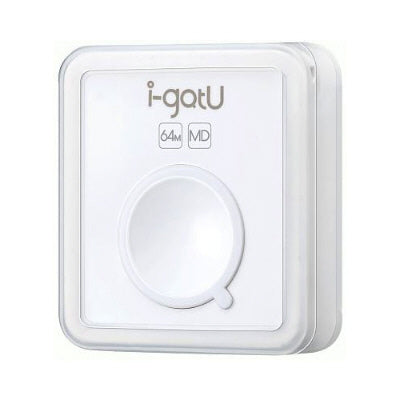

i-gotU GT-600 Travel & Sports GPS Data Logger
i-gotU GT-600B GPS / GNSS Data Logger - Water Resistant, Motion Sensor, 33g only, Managing Large Deployments with Ease (2022 Edition)
i-gotU GT-600B GPS / GNSS Data Logger - Water Resistant, Motion Sensor, 33g only, Managing Large Deployments with Ease (2022 Edition)
i-gotU GT-600B GPS / GNSS Data Logger - Water Resistant, Motion Sensor, 33g only, Managing Large Deployments with Ease (2022 Edition)

i-gotU GT-600B GPS / GNSS Data Logger - Water Resistant, Motion Sensor, 33g only, Managing Large Deployments with Ease (2022 Edition)

Regular price
$124.95
Regular price
Sale price
$124.95
Unit price
per
Availability
Sold out

USB / Wireless dual interfaces, GPS and QZSS multiple constellations, Windows, Android and IOS compatible)

Compared to previous models (i.e. GT 600) which are GPS, GT-600B is a GNSS logger that utilizes both GPS and QZSS constellations. It has multi-path detection, which dramatically eliminates Ionospheric error and multi-path effects. Compared to previous GPS models, the data accuracy is significantly better.

GT-600B has usb and wireless dual interfaces, which allows data to be downloaded either via either usb or wirelessly. Rather than using the proprietary USB cable for GT-600, GT-600B uses a standard micros-usb cable.


GT-600B has a built-in motion sensor and greater battery capabilities than GT-120B.

Managing large deployments of GT-600B with ease

The I-gotU GT-600B comes with mobile and Windows apps which help manage a large number of loggers.

1. You can view all your GT-600B devices on Google maps from your mobile phone app.

2. You can self define a group, add loggers to the group and select tracks from the group.

3. From your mobile phone, you can keep track of battery and memory statuses of all your GT-600B devices.

4. Not only can you backup your device settings, you can also standardize the settings of a bunch of devices by using import / export features.

5. If you want to protect the GT-600B data from unauthorized downloads, you can enable password check settings.

6. GT-600B can be turned on / off by a predefined schedule.

Built-in Motion Sensor

If you enable the “motion sensor” setting, GT-600B will switch itself off when there is no motion detected in 90 seconds. As soon as a motion is detected, GT-600B will turn itself on again. This feature helps to reduce power consumption.

Battery runtime by GPS log interval

GPS log interval

Battery runtime

1 sec

40hr

5 sec

40hr

10 sec

45hr

15 sec

150hr

30 sec

240hr

60 sec

400hr

Logging configuration options

Configurable GPS Logging interval

1sec~60min59sec

Circullar Logging

YES

POI

YES

Scheduled Logging

YES

Merge scheduled waypoints

YES

Smart Tracking

YES

Power triggered auto-logging

YES



Technical Spec:

Dimension

46x41.5x14.3mm

Weight

33g

Wireless connect to mobile phones

Yes

Wireless Chipset

Nordic nRF 52820

Wireless range

20m

GPS Chipset

MTK MT3337

Antenna

Patch Antenna

Channels



22 tracking / 66 acquisition-channel GPS receiver;

Supports up to 210 PRN channels;

GNSS support

GPS & QZSS

SBAS support

WAAS/EGNOS/MSAS/GAGAN

Other enhancement





12 multi-tone active interference cancellers (with ISSCC2011 award);

Indoor and outdoor multi-path detection and compensation;

Internal real-time clock (RTC);

RTCM ready

YES

NEMA support

NMEA 0183 standard V3.01 and backward compliance.

Supports 219 different data

update rates for position



GPS Sensitivity

Acquisition: -148 dBm (cold) / -163 dBm(hot)

Tracking: -165 dBm

Cold Start

< 35sec

Warm Start

< 34sec

Hot Start

<1 sec

USB cable

micro-usb, USB 2.0

Battery

700mAh

LED

Blue & Red

Operating Temperature

-10 ~ +50°C

Water-resist

YES

GPS Logger

YES

GPS Receiver

USB

Memory

262000

Motion Detection

YES

Disable Motion Sensor

YES

Disable Button

YES

Disable wireless

YES

Disable LED flashing

YES

Setup wireless download password

YES

Enable wireless upon schedule

YES

Configure wireless broadcast interval

YES

Broadcast latest GPS position

YES

Configure wireless TX Power (output power of wireless signal)

YES

Rename device (such as nickname)

YES

Power Saving Option above 7sec

NO

Firmware update

via PC software

Device configuration

via USB or wirelessly

Data download

via USB or wirelessly

Combined maps

YES

GPS Data Import format

GPX

GPS Data Export format

GPX, CSV



Software and compatibility:

GT-600B comes with below software:

  • Windows App: compatible with Windows 7, 8, 10 & 10
  • IOS App: compatible with IOS 12 and above
  • Android App: compatible with Android 7 and above

“I-gotU GPS” IOS / Android apps:

GT-600B can connect to the “I-gotU GPS” app on iphone/Android wirelessly. The “I-gotU GPS” app has the below features:

Wireless configuration
Instead of connecting through a USB cable, you can now wirelessly change configuration settings of GT-600B through the iphone/Android app.

Wireless data download
You can wirelessly download the log data from GT-600B to your smartphone.

Battery and memory status on App
To check the status of the device’s battery and memory, open the "i-gotU GPS" app.

Find my Device on Google Map
You can view the locations of your devices on Google maps from your mobile phone.


“I-gotU GPS” Windows application:

The new “I-gotU GPS” Windows software has the below new features:

  • playback group movement
  • measure distance from waypoint A to B.
  • measure distance from different anchor points.

Package content:

1 x GPS logger;

1 x Jelly case;

1 x usb cable;

(Does NOT comes with fastening strap.)

Documents:

GPSWebShop PDF Documents

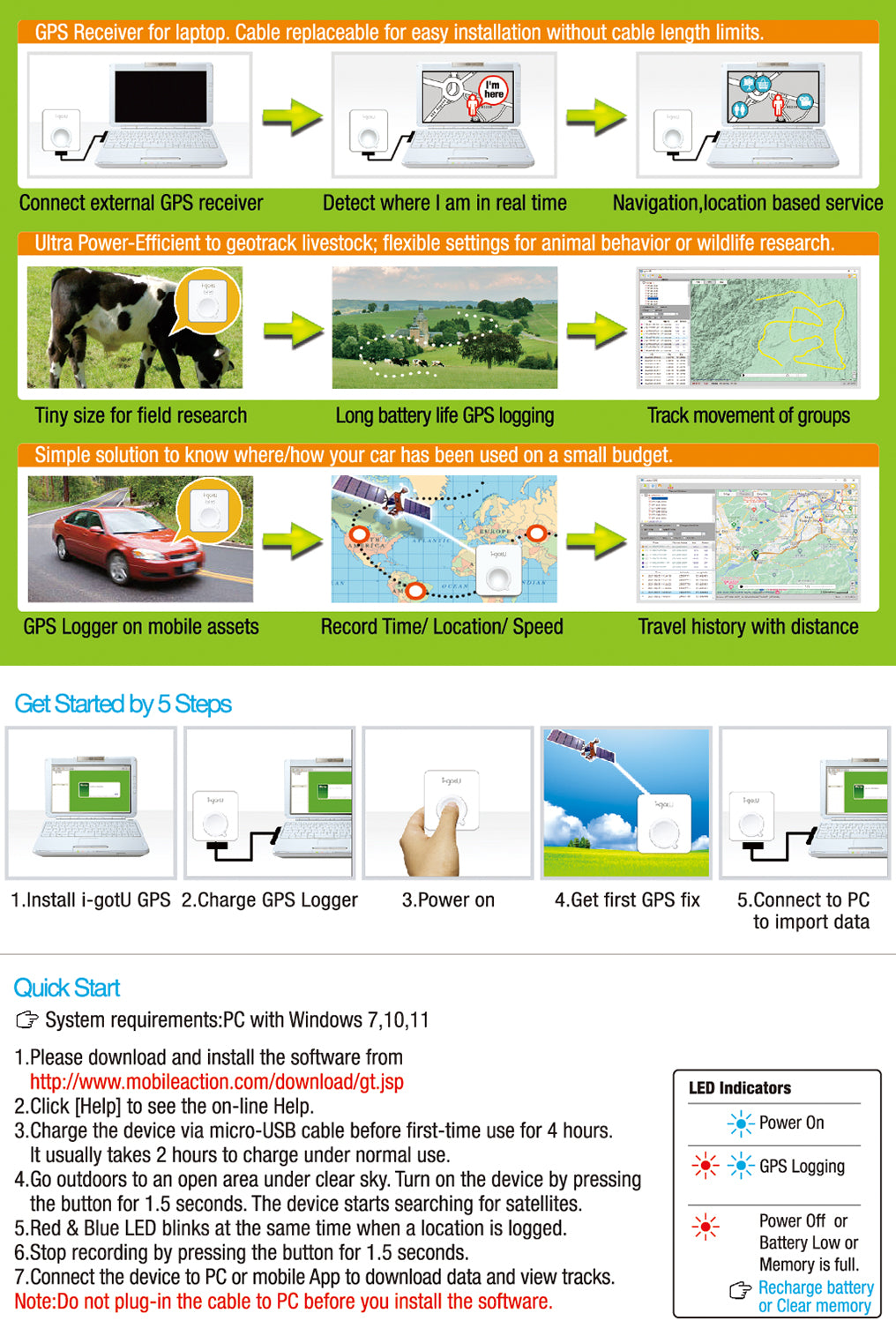

 - User Guide

 - side by side comparison for GT-120, GT-600, GT-120B and GT600B



Software Downloads:

GPSWebShop Windows Software

 - I-gotU_GPS


 Qstarz BL-1000GT android

 - I-gotU_GPS



 Qstarz BL-1000GT iOS

I-gotU_GPS
