This is the Bluetooth BLE(Bluetooth Low Energy) GPS. If your GPS software only support Bluetooth SPP(Like most old Bluetooth GPS Receivers in the market), please do NOT purchase this product.

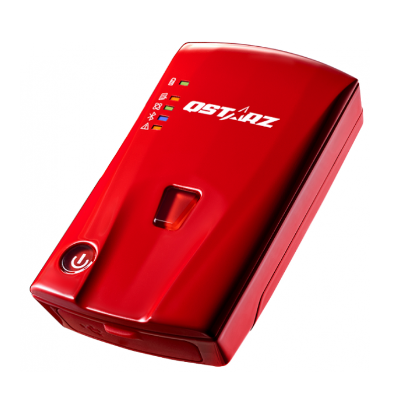

BL-1000ST is Qstarz Cross-Generation Bluetooth GPS Travel Recorder. To record your diversified travel, tracks, journey no matter how long or how far it takes, you can rely on BL-1000ST to reach all the needs. GNSS Support and wirelessly adds GPS+GLONASS to iPad, iPhone, and other Bluetooth enabled smartphones, tablets and laptops. Go on the journey, and the great companion BL-1000ST will confidently record your years of beautiful moment.
‧ Portable Travel Recorder to log your trip and point of interest
‧ Extended large memory capacity excellent for data collection
‧ Bluetooth 4.0 BLE connection to iPhone, iPad, or Android devices
‧ Long battery life and high sensitivity to suit diversified research
‧ GPS+GLONASS engine and Acceleration sensor enabled for optimizing log
Features:
‧ Bluetooth 4.0 GNSS(GPS+GLONASS) Travel Recorder
‧ 1Hz log to log one waypoint every 5 seconds
‧ Bluetooth interface to instantly add GPS to iPhone, iPad and Android devices
‧ Ultra long operation with 25 hours battery life
‧ Micro SD card logging and no worry multiple-day track logs
‧ Integrate Acceleration sensor to smartly manage power saving and movement detection
‧ 5 LEDs and Beeper integration to indicate device status
‧ Support POI button to memorize your point of interest immediately
‧ Micro USB port for Charging, data downloading and Firmware updating
‧ AGPS and SBAS (WAAS, EGNOS, MSAS, GAGAN) support
‧ Free Qstarz BLE GPS View Tool App from App Store or Google Play
‧ Bundled with QTravel photo-geotag analysis software (PC Windows)
‧ Bundled with DataViewer Raw Track Data managing software (PC Windows)
*Transmitting Qstarz specific protocol only
The Qstarz BLE GPS View app is a simple utility application for connecting with the Qstarz BLE GPS Recorder/Receiver from Qstarz International Co., Ltd.
The main features are as below:
‧Support to connect with Qstarz BLE GPS Devices
‧Show the GNSS status information (GPS/GLONASS)
‧ Show Satellite distribution and GNSS signal strength chart
‧Support recording GNSS data after GNSS position fixed
‧Save GPS records and export as CSV files
‧Show the battery level of the device
Documents:
Software Downloads:
|
|
|
Q&A |
Q1 How do I start recording track data?
A1 The BL-1000ST will start recording track data as soon as the device is power-on and got GPS fixed. First thing please ensure the device’s GPS satellite is fixed (need to be in an outdoor environment), the green LED on the BL-1000ST will be steady on after GPS fixed, and that means the device is recording track data now. Q2 How do I download the logged track data? A2 After the device has recorded track data, you can connect it to your computer via USB cable to download the track data to QTravel PC software (supports Windows OS 7 or above), which you can further manage and analyze the track data in detail, and combine geographic information with photos and conveniently share to friends. (On the first time use of the QTravel PC software, please input the software key in order to read data. The software key is attached on the Qstarz warranty card). Q3 What apps can the BL-1000ST support? A3 Qstarz BLE GPS View App is developed by Qstarz, and it is a utility application that supports iOS and Android phones. It is used to view GPS related information after connecting Qstarz BLE GPS devices, can test Bluetooth connection and display related GNSS information. In the future, we will continue to add more compatible apps. Q4 What is the difference between Qstarz BLE GPS View App and QTravel PC software? A4 Qstarz BLE GPS View App is a mobile phone tool app. The BL-1000ST will start recording track data as soon as the GPS position is fixed. You can at the same time open the Qstarz BLE GPS View App and Bluetooth connect to BL-1000ST to real-time view the GPS information. If you connect the device to the computer via USB cable to download the track data to QTravel PC software, you can further manage and analyze the track data in detail, and share to friends these tracks with photos integrating with geographic information. Q5 How do I update the firmware of my BL-1000ST device? a. Before proceeding updates, please make sure the device is power off. Connect device to your computer with a Micro USB cable, and make sure that the battery is installed and has more than 40% battery life. b. Open the file ” Download Index_BL-1000ST.HTML “ in the device memory, or go to the Qstarz official website (http://www.qstarz.com/download.php) to download the latest firmware. c. After opening the file manager, copy the firmware file FW.QST to the root directory of the device’s memory card. After the copy is completed, right click on the file manager icon and select Exit. The computer will be shown the message "You can safely remove the hardware". d. After removing the micro USB cable, the device will automatically perform the firmware update. The firmware update process takes about 1~2 minutes. Do not operate the device during this process to avoid the device update failure. The middle three LED lights will flash in turn. After the update is completed, the device will automatically shut down after two beeps, which means the update is completed. Q6 How to install the device correctly? A6 The satellite antenna is under the Qstarz trademark on the front of the BL-1000ST device. In order to receive the best GPS reception, please keep device position in front up, and make sure no metal or other coverings that will affect the reception. Q7 What should I pay attention to when reading logged data? A7 The device must be turned off first to read data. Q8 What’s the continuous long beep means after the device is turned on? A8 If the device makes the continuous long beep after powering on, it means the memory card is abnormal during the startup of the device. Please open the rubber cover at the bottom of the device to check if your Micro SD card is installed incorrectly. Please re-plug the Micro SD card and install it properly, then restart it to confirm whether to eliminate the continuous long beep problem. If the problem is remained, it might be memory card problem. It is recommended to use the utility program to perform FAT32 formatting on the memory card. **Please note that this action will erase all data on the memory card. Q9 You can purchase a lithium-ion battery that is compatible with the Nokia BL-5C size specification. A9 You can purchase a lithium-ion battery that is compatible with the Nokia BL-5C size specification. Q10 My BL-1000ST is not working, how can I get it back to normal operation? A10 Please remove the battery from the battery compartment for about 1 minute, and then re-load the battery and power on to make GPS fixed again. Or you can open the rubber cover at the bottom of the device and find a reset button next to the USB jack. Press the reset button through the paper clip to perform the hardware reset (forced shutdown). **Please note that the forced shutdown might result in the loss of the recorded data. Please operate it carefully. Q11 How to do when this message “scan and fix removable disk” showing up when you connected Qstarz to PC? A11 Please see below PDF file of scan and fix removable disk issue. How to do when this message Scan and fix removable disk-showing up when you connected Qstarz to PC.pdf Q12 How to do when this message “format the disk' message” showing up when you connected Qstarz to PC? A12 Please see below PDF file of format the disk message issue. How to do when this message Format the disk message showing up when you connected Qstarz to PC.pdf Q13 Operation process of SD card maintenance? A13 Please see below PDF file of format the disk message issue. Operation process of SD card maintenance.pdf |
