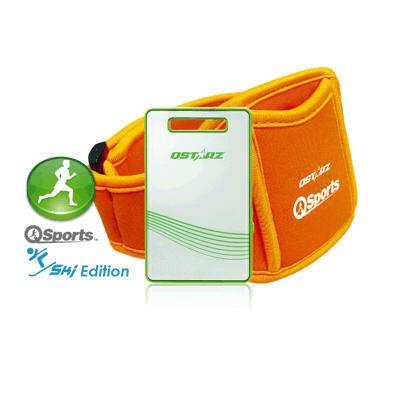

The latest BT-Q1300ST is integrated eXtreme 5Hz Log feature to excellently perform high speed sports activities such as Skiing. With this tiny design, it's the most suitable Sports companion which can record your sports, and through QSports software you can analyze sports, calculate calories, monitor personal health and project training plan.
Additionally, QSports is enhanced by adding Skiing Track Timing Analysis. You can analyze Ski Track by manually define Start point, Finish point and Split point. Then you can get detail Skiing information: Avg/Min/Max speed by each lap, Sector time (the time from one split point to another), Split time (the cumulative time from start point to split point), and point current speed.
• Adopt the latest MTK II chipset with high sensitivity -165dBm and Super High 66-Channel tracking
• Stand-Alone Sports recorder to log up to 200,000 records (*1)
• Slim, Thin, Li ght, and Stylish design, only 62L x 38W x 7H (mm)
• Lower power consumption up to 10hrs for travel recording
• Less than 15-Sec. AGPS fix support for faster positioning
• Support 5Hz Log for eXtreme Sports to log up to 5 times per second (Default 1Hz and changeable to 5Hz by utility provided)
• G-Mouse + Bluetooth in one: wired and wireless GPS receiver
• One button touch to activate Power, LOG, and POI easily
• Support POI push to memorize your favorite location immediately
• Fast Position Fix ,Cold start 35s, Warm start 33s,Hot start 1s
• Personal/Portable Navigation (PDA, Smartphone, PC, etc.)
• DGPS(WAAS+EGNOS+MSAS) support
*1 The waypoints would be decreased when the more options of Log Format are selected.
- PC Suite V4.0 QTravel & QSports for Windows
- GPS View V1.2.24 for Windows
Q1 How can I adjust my device to 10Hz mode?
A1 Please download the tool QstarzGPSView, from Qstarz website for adjustment. For more detailed instruction please refer to the Q1300ST user's manual 7-5, and other models as well.
Q2 My navigation software does not support baud rate 115,200. How can I make it work via USB interface with Qstarz GPS?
A2 When Qstarz GPS is connected via USB interface, the baud rate is fixed and should be set to 115200. If your software does not support this baud rate, please connect the device via Bluetooth interface whose baud rate is changeable.
Q3 My Q1300ST took longer time to get GPS fix. Why?
A3 BT-Q1300ST is the first super slim (0.7cm) GPS Sports recorder in the world. Due to this unique feature, we are forced to apply one special micro GPS antenna which might need a bit longer time more when you do GPS fix.
Q4 My Q1300ST crashed. How can I make it back to normal status?
A4 Please leave it until it drains out of battery to reset Q1300ST.
Q5 When I use PC_Suite SW to read log from device, it appears "No Data in Device." Why?
A5 Q1300ST will not log invalid GPS data (GPS with no fix). So please make sure to log valid GPS data under open sky environment. If the logger still cannot log, please perform a reset in QTravel SW -> Config GPS.
Q6 Will your device work with the iPad or iPhone?
A6 Our device can support iOS by "Jailbreak" the iPhone/iPad and use the application “Roqy” to connect external Bluetooth GPS antenna to your iPhone/iPad. Please refer to the website below :
Q7 Is there any way to get the software for a Mac?
A7 All of our software does not support mac OS.
The alternative way is using the following third party software.
Download log data:
Q8 Could you provide a Linux driver?
A8 So far all of our software does not support Linux platform. However, there is a third party software which is Linux compatible with Qstarz products. Below link is for your reference:
Q9 How can I change the NMEA sentence?
A9 Please download the tool “QstarzGPSView” from Qstarz website to adjust NMEA sentence.
Q10 How can I transmit log file to an Android phone via Bluetooth? It is able to pair but cannot connect.
A10 Please download free software ”Bluetooth GPS” and “Mytrack” from Android Market. Download the data files via Bluetooth from BT-Q1300ST to your Android smart phone. Please refer to the website below:
Q11 What is the “drift function” means?
A11 The “Drift” function is to correct the way points by delete the low speed way points.
Q12 Why the track recorder’s recorded track points is far away from the actual position?
A12 The drift point may be caused by slow speed or when you stay at a fix position for a while.
Q13 I get a message that says "FAILED TO CONNECT GPS MODULE. “ Can you help?
A13 Please Check connection COM port at Windows Device Manager -> Com&LPT -> GPS USB…..or CP210X…… And Manually select connection COM port at Software>Config GPS and test again.
Q14 I am having trouble to Upload AGPS data. What can I do?
A14 Please download QstarzGpsView and download AGPS from Setup->Update AGPS.
Q15 How can I geotag my photos?
A15 The GPS real time is based on UTC/GMT+0 time. What you have to do is to change UTC/GMT to your local time zone by selecting Display time zone in software.
And set the correct local time with your camera. When you import the pictures from your camera, the photo time will be synchronized automatically with the local time.
Q16 How can I set the time on the GPS unit?
A16 Sorry, you could not set the GPS time, all Qstarz GPS products is using the universal UTC/GMT time.
This means no matter where you use the device, the GPS time will be the same (UTC/GMT time) and the GPS device time could not be changed or modified.
Q17 Why am I getting the Google Maps API error message pop up and cannot use the map function, what can I do?
A17 Please download and update to the latest version of the software from our website to solve this problem.
