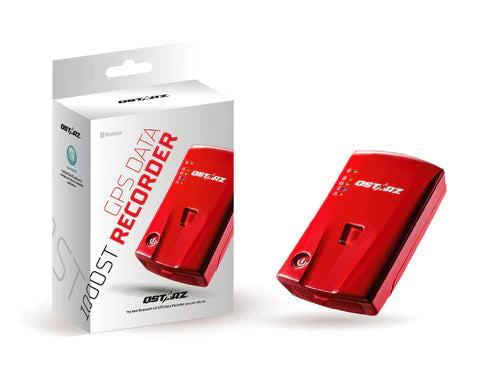

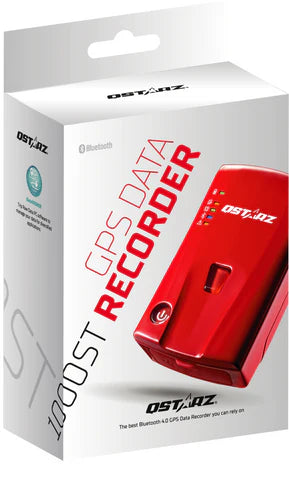

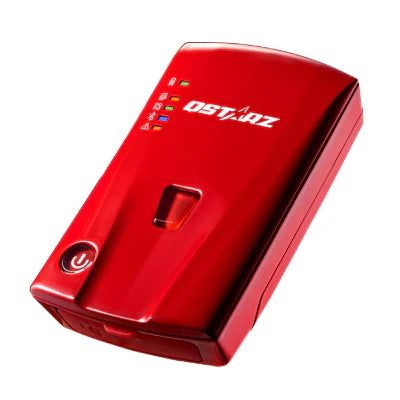

BL-1000ST is Qstarz Cross-Generation Bluetooth GPS Travel Recorder. To record your diversified travel, tracks, journey no matter how long or how far it takes, you can rely on BL-1000ST to reach all the needs. GNSS Support and wirelessly adds GPS+GLONASS to iPad, iPhone, and other Bluetooth enabled smartphones, tablets and laptops. Go on the journey, and the great companion BL-1000ST will confidently record your years of beautiful moment.
‧ Portable Travel Recorder to log your trip and point of interest
‧ Extended large memory capacity excellent for data
collection
‧ Bluetooth 4.0 BLE connection to
iPhone, iPad, or Android devices
‧ Long battery
life and high sensitivity to suit diversified research
‧ GPS+GLONASS engine and Acceleration sensor enabled for optimizing log
Features:
- Bluetooth 4.0 GNSS(GPS+GLONASS+QZSS) Travel Recorder
- 1Hz log to log one waypoint every 5 seconds as default
- Bluetooth interface to instantly add GPS to iPhone, iPad and Android devices*1
- Ultra long operation with 25 hours battery life
- Micro SD card logging and no worry multiple-day track logs
- Integrate Acceleration sensor to smartly manage power saving and movement detection
- 5 LEDs and Beeper integration to indicate device status
- Support POI button to memorize your point of interest immediately
- Micro USB port for Charging, data downloading and Firmware updating
- AGPS and SBAS (WAAS, EGNOS, MSAS, GAGAN) support
- Free Qstarz BLE GPS View Tool App from App Store or Google Play
- Bundled with DataViewer Raw Track Data managing software (PC Windows)
- Support HoudahGeo geo-tagging & HoudahGPS software for Mac*2
*1 Transmitting Qstarz specific protocol only
*2 HoudahGeo Mac software is paid software from Houdah and
purchase if needed
Technical Specs:
Product description: Bluetooth GPS Travel Recorder
Bluetooth: BLE Bluetooth 4.0
GNSS: GPS/GLONASS/QZSS
Frequency: GPS/QZSS: L1 1575.42MHz, C/A code GLONASS: L1 1598.0625~1603.375MHz, C/A code
Sensitivity: Tracking -165dBm
Update Rate: 1Hz
Recording Rate: 1Hz (default set as log every 5 second)
Acquisition Time: Cold/Warm/Hot Start: 35/34/1 sec. (without AGPS) Less than 15 sec. for cold start (with AGPS)
Position Accuracy: Autonomous: 3m CEP SBAS: 2.5m CEP (SBAS: WAAS, EGNOS, MSAS, GAGAN)
Datum: WGS-84
Attitude / Velocity: Max Attitude <10,000m Max Velocity <515m/sec, Velocity accuracy: 0.05m/s (with aid)
GPS Protocol: NMEA 0183 V4.10
Keys & LED: 3 Function buttons: Power, POI, and Reset button 5 LED Indications (Charge, Memory, GPS, Bluetooth, and Alarm)
Memory Capacity: 16GB Micro SD Card
Battery: Removable and rechargeable Lithium-ion
Battery life: Bluetooth connected: 25 hrs
Antenna: Built-in GPS Antenna
Sensor: Yes (G-Sensor with ±3G dynamic range)
Beeper: Yes
Input Power: DC 5V, 500mA
Interface: Micro USB port (for charging, data downloading and firmware update)
Firmware Upgradable: Yes (via USB charging port)
Environment Temperature: Operating Temp: -10 °C to + 60°C Storage Temp: -20°C to + 60°C Charging Temp: 0 °C to + 45 °C
Unit dimensions: 81 x 48 x 19 mm
Weight: 69 grams with battery (47 grams without battery)
Accessories: Rechargeable battery, USB Cable
Software
Bundled Windows Software:
Blundled IOS and Android APP:
The Qstarz BLE GPS View app is a simple utility application for connecting with the Qstarz BLE GPS Recorder/Receiver from Qstarz International Co., Ltd. The main features are as below:
- Support to connect with Qstarz BLE GPS Devices
- Show the GNSS status information (GPS/GLONASS)
- Show Satellite distribution and GNSS signal strength chart
- Support recording GNSS data after GNSS position fixed
- Save GPS records and export as CSV files
- Show the battery level of the device
HoudahGeo Mac:
(The HoudahGeo software for Mac is a paid product offered by Houdah. Please purchase it if needed)
Product Resources
Official Documents:
Software Downloads:
Tech Support Topics and Forums:
- My BL-1000ST is not working, how can I get it back to normal operation?
- You can purchase a lithium-ion battery that is compatible with the Nokia BL-5C size specification
- What’s the continuous long beep means after the device is turned on?
- What should I pay attention to when reading logged data?
- How to install the device correctly?
- How do I update the firmware of my BL-1000ST device?
- What is the difference between Qstarz BLE GPS View App and QTravel PC software?
- What apps can the BL-1000ST support?
- How do I download the logged track data?
- How do I start recording track data?
- Can my BL-1000GT be bundled with another Smartphone?
- How do I start recording race data?
- What are the differences between 2 lap timers (Qstarz BL-Q1000GT vs Qstarz BL-Q818GT) ?
- Why the lap timer "Qstarz BL-1000GT" is better than its previous generation "Qstarz BT-Q1000eX"?
